Time/Repeat gate (PHASE_GATE)

Chooses the True or False path by visit count or elapsed time

Documented for app version 1.0.51 (not on Google Play yet)Updated: October 2, 2026

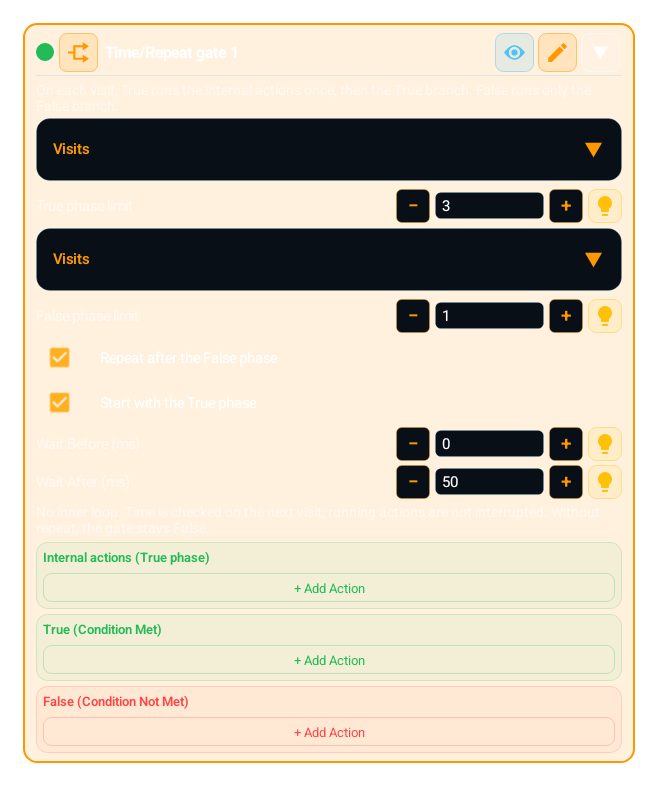

Time/Repeat gate (PHASE_GATE) block card

What Does It Do?

Runs its internal actions for a visit count or time period. In the True phase, the internal actions run once, followed by the True branch. In the False phase, only the False branch runs. The block does not create an inner loop; the surrounding flow supplies later visits.

When to Use?

Use it to run a scan on 3 visits and a different action on 1 visit, or alternate two phases by time.

How to Use?

Add Time/Repeat gate from the Flow category.

For each phase, choose Visits, Milliseconds or Seconds as the unit and enter the limit.

Put the work in Internal actions (True phase) and the follow-up actions on the True and False branches.

Set Start with the True phase and Repeat after the False phase.

Use an outer loop for later visits.

Parameters

True/False unit and limit

Visits, Milliseconds or Seconds for each phase; the defaults are 3 visits True and 1 visit False. Limits are 1–1,000,000,000 visits, 1–604,800,000 ms or 1–604,800 seconds (7 days); supports variable and Random bindings.

Repeat and starting phase

Repeat after the False phase returns from False to True; Start with the True phase chooses the first phase. Both are on by default.

Internal actions and branches

Internal actions (True phase) run once, only in the True phase and before its True branch.

Parameter	Description
True/False unit and limit	Visits, Milliseconds or Seconds for each phase; the defaults are 3 visits True and 1 visit False. Limits are 1–1,000,000,000 visits, 1–604,800,000 ms or 1–604,800 seconds (7 days); supports variable and Random bindings.
Repeat and starting phase	Repeat after the False phase returns from False to True; Start with the True phase chooses the first phase. Both are on by default.
Internal actions and branches	Internal actions (True phase) run once, only in the True phase and before its True branch.

Example Usage

True: 3 visits. False: 1 visit. Repeat enabled, start with True. An Image block inside runs on visits 1, 2, and 3. Visit 4 runs only the False branch; visit 5 starts a new True phase.

Combinations / Used With

Use Image or Color inside. Bind limits to a variable or Random range through the lightbulb menu. The code editor provides PhaseGate.create, next, status, and reset.

Tip

Chooses the True or False path by visit count or elapsed time

Warnings / Cautions

Time is checked only on the next visit; an expired phase does not interrupt a running child action. The active limit is fixed at phase entry. With repeat disabled, the block stays in False. A new macro run resets its state. Limits must be positive integers.

Step-by-Step Mastery: Basic → Advanced → Pro

The same block at three levels: a quick start, the real options, and professional techniques.

Basic

Time/Repeat selects the True or False phase on each visit; it does not create a loop. The visual defaults select True for 3 visits, False for 1 visit, then repeat. In the True phase, Internal actions complete once before the True branch. The False phase runs only the False branch. An outer macro loop or existing flow supplies the next visit.

Advanced

Choose visit count, milliseconds, or seconds separately for each phase. Limits must be at least 1; the bulb menu supports a variable or a two-endpoint Random range. Timing starts on the first actual visit and is evaluated only when revisited; expiry does not interrupt an inner action already running. Each visit makes at most one phase transition. Configure Repeat after False and Start with True separately.

Pro

The active phase keeps the unit and limit captured on entry; a changed binding applies on the next phase entry. Restarting the macro resets run counters. In Lua, call PhaseGate.create once and retain the handle between visits; PhaseGate.next evaluates one visit. PhaseGate.status only reads without advancing the phase; PhaseGate.reset returns to the state before the first visit. Options passed to next or reset are a complete configuration, not a partial patch. API defaults are 1 True / 1 False; the visual block explicitly sends its 3 / 1 defaults.

Real-World Scenarios — Step-by-Step Recipes

Small, reproducible examples that combine several blocks — build them straight into your own macro.

Run 3 times and skip once

1Place Time/Repeat inside a bounded outer repetition.
2Set both units to visit count, with limits 3 and 1; enable repeating and starting with True.
3Add LOG to Internal actions and distinct LOG messages to the True and False branches.
4Across 8 visits, verify that the first 3 run Internal actions and True, the fourth runs only False, and the pattern repeats.

Evaluate a timed phase on revisit

1Set the True phase to seconds with a limit of 2 and the False phase to visit count with a limit of 1.
2Enable repeating and revisit the block through a controlled outer flow with a short Wait.
3After 2 seconds from the first visit, verify that the next visit selects False.
4If an inner action lasts longer than 2 seconds, do not expect it to be interrupted; the phase is evaluated on the next visit.

Which Blocks to Pair With — Pro Combinations

This block is useful on its own — but it shines when paired with the right partners.

+ GROUP / outer loop

Revisits the phase gate; the gate itself does not create a repetition loop.

+ IMAGE / TEXT / COLOR

A scan inside Internal actions runs only during True. Treat scan success and phase selection as separate decisions.

+ LOG / variable / Random

Use LOG to check phase order; bound limits apply on the next phase entry without restarting the active phase.

Common Mistakes and Fixes

Do not enter 0 as a phase limit: the minimum is 1. Wait before/after are separate millisecond fields where 0 is valid.

Calling PhaseGate.create on every iteration restarts the counter. Retain the same handle between visits.

With repeating disabled, the gate stays in False; starting with False never advances to True. Enable repeating and check the outer flow when alternation is needed.

Pro Tips

Visit limits are 1–1,000,000,000; time limits are 1–604,800,000 ms or 1–604,800 seconds. Correct fractional, negative, unknown, or excessive values before running.

Logic uses the same phase editor: Internal actions live inside the node, while True/False paths use canvas connections. Verify with LOG that connections do not call an action twice.

PhaseGate.status returns these fields without advancing the phase: phase (nil before the first visit), visits (in the active phase), total (all visits), cycles (returns from False to True), mode, limit and elapsedMs; a timed limit is reported in milliseconds. Use it to log progress.

This Block's Code (Editor View)

Lua

The Lua below is what the Code Editor generates for this block with sample settings. Adding cases, branches, actions or loops, or changing settings, extends the generated code accordingly. Study it to see what the block does under the hood, to learn Lua, or to copy and adapt it. Use the Copy button (top-right) to paste it into the Code Editor, or “Try in Editor →” to run it in the live editor.

lua

Try in Editor →

local __mh_phase_gate_api = {create = PhaseGate.create, next = PhaseGate.next}
local __mh_phase_gate_state = {}

do
 local _mh_phase_config_1 = {trueMode="count", trueLimit=3, falseMode="count", falseLimit=1, repeatCycle=true, startWithTrue=true}
 __mh_phase_gate_state["00000000-0000-4000-8000-000000000001"] = __mh_phase_gate_state["00000000-0000-4000-8000-000000000001"] or __mh_phase_gate_api.create(_mh_phase_config_1)
 if __mh_phase_gate_api.next(__mh_phase_gate_state["00000000-0000-4000-8000-000000000001"], _mh_phase_config_1) then
  System.log("phase body")
  System.log("true phase")
 else
  System.log("false phase")
 end
end

Note: generated code can evolve across versions; helper names (e.g. _reg1, m1) and internal optimizations may change. The logic and the called APIs reflect the block’s behavior.
