No-Code Workspace — Block Reference

Data and UtilitiesBlock usage recipe

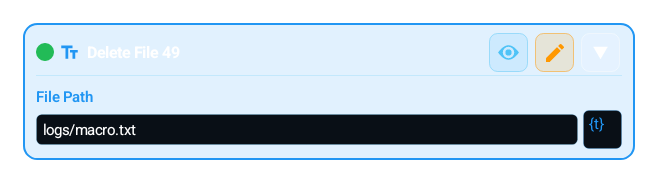

File Delete (FILE_DELETE)

Deletes a sandboxed file or folder

Documented for app version 1.0.50Updated: October 2, 2026

What Does It Do?

Deletes the configured sandbox file path. Use it for cleanup, removing temporary exports, and controlled cleanup after recovery flows.

When to Use?

Use it when you want to:

Clean up temporary reports or cache files

Remove an intermediate file after a successful export

Refresh stale output at the end of a recovery flow

How to Use?

Add FILE_DELETE

Enter the file path

For critical flows, validate the target first with ASSERT, FILE_READ, or COMPARE

Parameters

File Path

Local sandbox file or folder path to delete

Parameter	Description
File Path	Local sandbox file or folder path to delete

Example Usage

Scenario: Clean up a temporary report after export

Create the report with HTTP_REQUEST or FILE_WRITE

If the flow succeeds, FILE_DELETE -> path = logs/temp_report.txt

Record cleanup with LOG

Combinations / Used With

COMBINATIONS:

FILE_READ + ASSERT + FILE_DELETE: validate then clean up

ERROR_HANDLER + FILE_DELETE: remove corrupt intermediate output

FILE_WRITE + FILE_DELETE: one-time export cleanup

Tip

Keep delete blocks in cleanup or recovery sections when possible; separate them from the main data production steps.

Warnings / Cautions

WARNING:

Delete operations cannot be undone; folders are deleted with their contents

A path that does not exist counts as already deleted and raises no error

A path outside the sandbox or an invalid path is rejected and the block raises an error

Add precondition checks before deleting valuable user data

Step-by-Step Mastery: Basic → Advanced → Pro

The same block at three levels: a quick start, the real options, and professional techniques.

Basic

FILE_DELETE removes the sandbox file or folder path you specify. Use it to clean up temporary reports, cache, or intermediate output you no longer need. The delete is irreversible, so reviewing the target before deleting matters.

Advanced

The path still passes sandbox validation at runtime: paths that escape the sandbox, contain null bytes, or are invalid are not deleted but rejected. A path that does not exist counts as already deleted and raises no error; folders are deleted together with their contents. If the path is rejected or the delete fails, the generated code raises an error (inside a run-forever loop it logs the failure and the loop continues). You can make the path dynamic by binding it to a variable with the lightbulb, but dynamic paths carry a higher risk of a wrong value; in critical flows validate the target first with ASSERT, FILE_READ, or COMPARE. Keeping delete blocks in cleanup/recovery sections separates them from main data production.

Pro

Place FILE_DELETE at the end of one-time export flows: produce a temp file with FILE_WRITE, process it, and delete only AFTER success is confirmed. To refresh corrupt or half-written intermediate output, delete and regenerate inside an ERROR_HANDLER recovery branch. If you use a dynamic path, verify with FILE_READ right before deleting that the file has the expected content (the strongest guard against deleting the wrong file). Never delete valuable user data directly; keep deletable items in a separate, dedicated cache/temp directory so even a wrong variable only affects throwaway data.

Real-World Scenarios — Step-by-Step Recipes

Small, reproducible examples that combine several blocks — build them straight into your own macro.

Clean up a temporary report after export

1FILE_WRITE -> path = logs/temp_report.txt (produce the report)
2Process it with HTTP_REQUEST or another step
3On success, FILE_DELETE -> path = logs/temp_report.txt
4Record the cleanup with LOG

Validate the target before deleting

1FILE_READ -> path = cache/stale.json, resultVar = body
2ASSERT -> body contains the expected marker
3FILE_DELETE -> path = cache/stale.json
4Regenerate a fresh version with FILE_WRITE

Which Blocks to Pair With — Pro Combinations

This block is useful on its own — but it shines when paired with the right partners.

+ FILE_READ + ASSERT

Confirms by content that you are deleting the right file before an irreversible action.

+ ERROR_HANDLER

Deletes corrupt intermediate output in the recovery branch and regenerates a clean state.

+ FILE_WRITE

Completes a write-process-delete lifecycle for one-time temporary files.

Common Mistakes and Fixes

Forgetting the delete is irreversible. Fix: never delete valuable data directly; add a precondition (FILE_READ/ASSERT/COMPARE) first.

Ignoring that a dynamic path bound with the lightbulb can hold a wrong value. Fix: verify the path points to the expected file right before deleting.

Placing the delete in the middle of main data production. Fix: group deletes in a cleanup/recovery section, separate from critical production steps.

Pro Tips

Keep everything deletable in a dedicated cache/ or temp/ directory so even a mistake only touches throwaway data, never your real output.

Log delete success/failure; it makes diagnosing cases like a sandbox rejection or a missing file much easier afterward.

This Block's Code (Editor View)

Lua

The Lua below is what the Code Editor generates for this block with sample settings. Adding cases, branches, actions or loops, or changing settings, extends the generated code accordingly. Study it to see what the block does under the hood, to learn Lua, or to copy and adapt it. Use the Copy button (top-right) to paste it into the Code Editor, or “Try in Editor →” to run it in the live editor.

lua

Try in Editor →

local _file_delete_ok1 = File.delete("scripts/output.txt")
if not _file_delete_ok1 then
 error("FILE_DELETE action returned false: FILE_DELETE")
end

Note: generated code can evolve across versions; helper names (e.g. _reg1, m1) and internal optimizations may change. The logic and the called APIs reflect the block’s behavior.

Block ↔ Lua Mapping →

Shared Controls for This Block Family

The guidance below is not identical for every block. It summarizes the professional controls that most often repeat in the selected block family.

🗃Source and Destination

Use file paths, key names, regex sources, and JSON paths with clear naming discipline.

🧷Default Value

Define default outputs clearly so the builder flow does not collapse when data is missing.

🔄Write Then Read Back

For KV or file writes, verifying the result in the next block is healthier in production-grade flows.

🪶Narrow Output Design

Instead of carrying large raw payloads, extract the value you need and pass it forward via a result variable.

Builder vs Lua Boundary

Raw touch pointer lifecycle stays code-first

TOUCH and TOUCH_BREAK cover recipe-style touch flows. Raw pointer choreography such as Touch.down, Touch.move, Touch.up, Touch.dispatch, Touch.reset, Touch.breakAll, and Touch.releaseAfter is not exposed as a first-class builder block.

Touch.downTouch.moveTouch.upTouch.dispatchTouch.resetTouch.breakAllTouch.releaseAfter

Bounded dialog design is builder-backed; freer composition stays code-first

The DIALOG block and dialog designer cover a bounded field set in the builder: Info Text, Text Input, Checkbox, Description, Radio Group, Dropdown, Multi Select, Tab Group, Date Time, Number Range, Slider, Image Picker, Color Picker, File Picker, Recorder Picker, Tag, Signature, and Spacer. The buttons are designed too: the Positive button and Negative button tabs set each button’s text, background, and border color, corner radius, and minimum height next to a preview. Freer Setting.builder composition, multi-step wizard flows, and mixed HUD/dialog choreography still do not map 1:1 into the builder.

Coming soonv1.0.51Two more fields: Agent Detect references (agent_detect_editor) lets the user pick a saved reference set or add and edit references, and Save confirms the selection; Navigation setup editor (navigation_editor) edits a saved map, marker and route from the Dialog and returns the setup and route selection without moving the character.

Setting.builderDialogHudTextViewAgentDetectEditorNavigationEditor

Advanced HTTP request chaining stays code-first

HTTP_GET, HTTP_POST, and HTTP_PUT cover common fixed-method flows; HTTP_REQUEST covers one bounded request with method, header lines, body, content type, query parameters (GET and DELETE), timeout, and a bounded retry. These blocks never throw; they write the status code (-1 on a network failure). Cookie handling, chained request objects, and lower-level client flows still need the code editor.

Request()Request.setCookieRequest.getCookiesCUSTOM_CODE

General programming surfaces stay code-first

The MAP, LIST, JSON_PARSE, REGEX_MATCH, and METRICS blocks cover the everyday cases: map actions, a static list, reading a value from a JSON path, regex match, find, replace, and split, and metrics actions. The rest of the Map, Array, JSON, Regex, and Metrics APIs (for example Array sort, filter, and map) is broader than the builder recipe model and stays on the CUSTOM_CODE and code editor side.

MapArrayJSONRegexMetrics

Low-level runtime and Lua composition stays code-first

Runtime helpers, raw Request objects, Lua built-ins such as print/pcall/xpcall, and free-form object chaining patterns are represented through CUSTOM_CODE or the code editor.

RuntimeRequestprintpcallxpcallCUSTOM_CODE

Debug Mode and Breakpoints

Each block card now exposes an independent breakpoint toggle. When enabled, the breakpoint preference is stored with the block.

Breakpoints are only emitted into runtime code when Debug Mode is enabled from Visual Builder settings. When Debug Mode is off, breakpoints stay saved but do not pause execution.

Use ASSERT for fail-fast validation, and use breakpoints for step-by-step tracing and controlled pauses in the same flow.

Variable Scope

Variables defined with SET_VARIABLE are accessible throughout the macro (global scope). All blocks can read/write the same variable.

However, a variable defined inside a GROUP will be 'nil' (undefined) until the GROUP executes. Blocks outside the GROUP using this variable may produce unexpected results.

FOR_EACH loop variables (item and index) only carry valid values inside the loop body. Outside the loop they are outside local scope and should not be used.

TRY_CATCH error variable is only valid within the catch block. If the try block succeeds, the catch branch is not entered and the error variable remains undefined.

TIP: Before using a variable inside a GROUP, assign a default value with SET_VARIABLE outside the GROUP. This way the variable won't be nil even if the GROUP has not run.

Inline Expressions

You can embed variable values and calculations into text fields using {{ expression }} syntax. Expressions inside double curly braces are evaluated as Lua code and the result is inserted into the text.

Syntax

{{ expression }}

Examples

Skor: {{ score + 1 }} → "Skor: " .. tostring(score + 1)

{{ name }} kazandı! → tostring(name) .. " kazandı!"

X:{{ x }} Y:{{ y }} → "X:" .. tostring(x) .. " Y:" .. tostring(y)

Supported Blocks

SET_VARIABLELOGCOMPARECLIPBOARD_WRITENOTIFY_TOASTKV_SET

Security Note

Expressions are checked by the sandbox policy. Security-sensitive calls like loadstring, require, debug are automatically blocked.

General Tips

Keep scan regions as small as possible — improves speed, reduces false matches.

Always add an exit condition when using infinite loops (BREAK, timeout, or conditional exit).

Use network operations and error-prone steps inside TRY_CATCH.

If you need global error handling, use the Error Handler (ERROR_HANDLER) block as a singleton in the project.

Small coordinate offsets (CLICK/SWIPE) improve tap accuracy across different DPI and screen scales.

Customize macros with Dialog block — different parameters each run.

Define repeating steps once with GROUP_CALL, call from many places.

Cross-macro local library

Local Shared Macro Area

The Local Shared Macro Area moves blocks, variables, dialog fields, gallery assets, and imported media dependencies between macros on the same device. It is device-local, not cloud sync, not Firebase sharing, and not a replacement for public macro sharing.

Professional usage model: put a reusable login flow, common scan region, shared dialog form, variable group, template image, color profile, replay recording, or imported PLAY_SOUND media file into the shared area from one macro, then import it from the relevant + menu in another macro.

VISUAL_BLOCKSVARIABLESDIALOG_FIELDSTEMPLATE_IMAGECOLOR_SWATCHREPLAY_RECORDMEDIA_FILE

Send to the shared area

When one item or a multi-selection is active, the shared-area button can copy the selected part from the workspace, group, true/false action branch, dialog, and variables surfaces into the device-local library.

Import into another macro

The shared-area entry under the + menu imports the selected item into the surface that opened it. Main workspace, group, action branch, dialog, and variables each receive the compatible item type.

Share gallery assets

Gallery items include template images, color swatches, replay records, and imported audio/media files. They can move between macros on the same device so repeated templates, colors, recordings, and PLAY_SOUND media assets do not need to be captured again.

Keep it clean

The shared area is not a permanent dumping ground. Delete stale shared items from the shared-library panel; imports create a copy in the target macro and do not rewrite the source macro flow.

Checkpoint: after importing, review block names, linked template/image/color/record/media assets, and variable names in the target macro. The shared area creates a copy; delete stale shared items from the shared-library panel to keep the library clean.

AI assistant

Build a block chain with MH AI in natural language

Tell MH AI what you want in plain language; it proposes the right block sequence and lands it in the workspace after you approve. In the current release it works with cloud providers such as Gemini, Claude, and OpenAI; on-device local models are on the roadmap.
