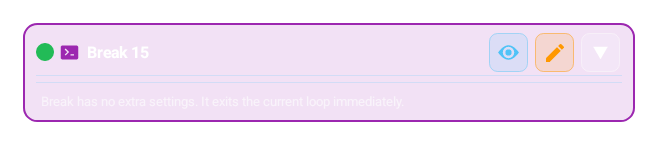

Break (BREAK)

Leaves the loop it is in

Documented for app version 1.0.50Updated: October 2, 2026

What Does It Do?

Ends the nearest loop at once; the flow continues after the loop. Loops are: For Each, While, Repeat Until, a Group or If / Else with its loop on, a looping Group Folder and the main flow’s repeat setting. It has no parameters.

When to Use?

Leave a loop when an image or text appears

Leave when a counter reaches its target

How to Use?

Add a condition block inside the loop (Compare, IMAGE, TEXT…)

Add Break to the exit branch; the block list offers it only inside a loop

Example Usage

GROUP (Infinite Loop) → TEXT: search for "Complete"

TRUE branch: Break; FALSE branch: WAIT 1000 ms

Combinations / Used With

COMPARE + BREAK: leave by counter

IMAGE / TEXT + BREAK: leave when the screen changes

Tip

Leaves the loop it is in

Warnings / Cautions

It breaks only the nearest loop; nested loops need a separate exit for the outer one

A Break outside any loop is a validation error

When the main flow loops infinitely and that is the nearest loop, Break does not stop the macro: the pass starts over and validation warns. Use SYSTEM → Stop Macro to end it

Step-by-Step Mastery: Basic → Advanced → Pro

The same block at three levels: a quick start, the real options, and professional techniques.

Basic

BREAK immediately ends the nearest loop it sits inside, and the macro continues after that loop. Loops are: For Each, While, Repeat Until, a GROUP or If / Else with its loop on, a looping Group Folder and the main flow’s repeat setting. It has no parameters. It is not used on its own but on a branch of a condition block (COMPARE, IMAGE, TEXT…), so the exit happens only when the condition holds.

Advanced

BREAK breaks only the NEAREST loop; in nested loops each level needs its own exit to leave the outer loop. Body blocks after BREAK do not run that pass. The block list offers BREAK only inside a loop; a BREAK placed outside any loop is a validation error and the macro does not start. Special case: when the main flow loops infinitely and that main loop is the nearest loop, BREAK does not stop the macro; the pass starts over and validation shows a warning. Use the SYSTEM block’s Stop Macro command to end the macro.

Pro

BREAK is the core tool for taming infinite GROUP loops: exit cleanly with TEXT/IMAGE + BREAK when a "Done" image/text appears. To exit an outer loop from nested loops, use a flag variable: in the inner loop SET_VARIABLE: exit = true + BREAK, in the outer loop COMPARE exit == true → BREAK. As a safety bound put a maximum-turn BREAK in every long loop (COMPARE turns > N → BREAK); this is a second line of defense independent of loopDurationCapMs. Always place BREAK behind a condition; an unconditional BREAK kills the loop on the first turn and is usually a bug.

Real-World Scenarios — Step-by-Step Recipes

Small, reproducible examples that combine several blocks — build them straight into your own macro.

Exit the loop when "Done" appears

1GROUP (infinite loop)
2TEXT: search "Done"
3TRUE branch: BREAK (exit when found)
4FALSE branch: WAIT 1000ms
5After loop: next operations

Exit nested loops with a flag

1SET_VARIABLE: exit = false
2WHILE (outer): while outerCond is true
3FOR_EACH (inner): iterate the list
4COMPARE: critical == true → TRUE: SET_VARIABLE exit = true + BREAK (breaks inner loop)
5COMPARE: exit == true → TRUE: BREAK (breaks outer loop)

Which Blocks to Pair With — Pro Combinations

This block is useful on its own — but it shines when paired with the right partners.

+ TEXT / IMAGE / COLOR

The standard way to leave a loop when an image/text/color appears; brings wait loops under control.

+ COMPARE

Exits when a counter or state variable reaches a threshold; the basis of the maximum-turn safety bound.

+ GROUP

Turns an infinite GROUP loop into a controllable, terminable one; without BREAK there is no exit from GROUP.

+ SET_VARIABLE (flag)

Sets the flag that carries the "exit" signal to the outer loop in nested loops; needed because a single BREAK cannot break two layers.

Common Mistakes and Fixes

Adding BREAK standalone and unconditional. Fix: always place BREAK in a COMPARE/IMAGE/TEXT branch; an unconditional BREAK ends the loop on the first turn.

Trying to exit a two-layer loop with one BREAK. Fix: BREAK only breaks the nearest loop; use a flag variable + a second COMPARE/BREAK for the outer loop.

Trying to end the main flow’s infinite loop with BREAK. Fix: the pass just starts over; use SYSTEM → Stop Macro to end the macro.

Pro Tips

Give every infinite GROUP/WHILE loop both a logical exit (TEXT/IMAGE + BREAK) and a maximum-turn BREAK; the two catch different failure modes.

Remember no block runs in the same turn after BREAK; put any cleanup needed before exit (HUD dispose, log) BEFORE the BREAK.

This Block's Code (Editor View)

Lua

The Lua below is what the Code Editor generates for this block with sample settings. Adding cases, branches, actions or loops, or changing settings, extends the generated code accordingly. Study it to see what the block does under the hood, to learn Lua, or to copy and adapt it. Use the Copy button (top-right) to paste it into the Code Editor, or “Try in Editor →” to run it in the live editor.

lua

Try in Editor →

local items = {10, 20}

local _foreach_list_1 = items
if type(_foreach_list_1) ~= "table" then
 if System and System.log then System.log("FOR_EACH skipped: list variable 'items' is not a table") end
 _foreach_list_1 = {}
end
for index, item in ipairs(_foreach_list_1) do
 goto _break_3
 ::_cont_2::
end
::_break_3::

Note: generated code can evolve across versions; helper names (e.g. _reg1, m1) and internal optimizations may change. The logic and the called APIs reflect the block’s behavior.

Block ↔ Lua Mapping →

Shared Controls for This Block Family

The guidance below is not identical for every block. It summarizes the professional controls that most often repeat in the selected block family.

🔀Branch and Exit Rules

Define TRUE/FALSE, try/catch, and loop exit behavior before chaining more blocks.

📦Results and Scope

Keep it explicit where group, dialog, and loop variables are created and where they are consumed.

🛑Safety Bounds

Long flows become brittle quickly without timeouts, ASSERT blocks, BREAK logic, or explicit guards.

🧩Modularity

Moving repeated steps into GROUP and GROUP_CALL improves readability in larger projects.

Builder vs Lua Boundary

Raw touch pointer lifecycle stays code-first

TOUCH and TOUCH_BREAK cover recipe-style touch flows. Raw pointer choreography such as Touch.down, Touch.move, Touch.up, Touch.dispatch, Touch.reset, Touch.breakAll, and Touch.releaseAfter is not exposed as a first-class builder block.

Touch.downTouch.moveTouch.upTouch.dispatchTouch.resetTouch.breakAllTouch.releaseAfter

Bounded dialog design is builder-backed; freer composition stays code-first

The DIALOG block and dialog designer cover a bounded field set in the builder: Info Text, Text Input, Checkbox, Description, Radio Group, Dropdown, Multi Select, Tab Group, Date Time, Number Range, Slider, Image Picker, Color Picker, File Picker, Recorder Picker, Tag, Signature, and Spacer. The buttons are designed too: the Positive button and Negative button tabs set each button’s text, background, and border color, corner radius, and minimum height next to a preview. Freer Setting.builder composition, multi-step wizard flows, and mixed HUD/dialog choreography still do not map 1:1 into the builder.

Coming soonv1.0.51Two more fields: Agent Detect references (agent_detect_editor) lets the user pick a saved reference set or add and edit references, and Save confirms the selection; Navigation setup editor (navigation_editor) edits a saved map, marker and route from the Dialog and returns the setup and route selection without moving the character.

Setting.builderDialogHudTextViewAgentDetectEditorNavigationEditor

Advanced HTTP request chaining stays code-first

HTTP_GET, HTTP_POST, and HTTP_PUT cover common fixed-method flows; HTTP_REQUEST covers one bounded request with method, header lines, body, content type, query parameters (GET and DELETE), timeout, and a bounded retry. These blocks never throw; they write the status code (-1 on a network failure). Cookie handling, chained request objects, and lower-level client flows still need the code editor.

Request()Request.setCookieRequest.getCookiesCUSTOM_CODE

General programming surfaces stay code-first

The MAP, LIST, JSON_PARSE, REGEX_MATCH, and METRICS blocks cover the everyday cases: map actions, a static list, reading a value from a JSON path, regex match, find, replace, and split, and metrics actions. The rest of the Map, Array, JSON, Regex, and Metrics APIs (for example Array sort, filter, and map) is broader than the builder recipe model and stays on the CUSTOM_CODE and code editor side.

MapArrayJSONRegexMetrics

Low-level runtime and Lua composition stays code-first

Runtime helpers, raw Request objects, Lua built-ins such as print/pcall/xpcall, and free-form object chaining patterns are represented through CUSTOM_CODE or the code editor.

RuntimeRequestprintpcallxpcallCUSTOM_CODE

Debug Mode and Breakpoints

Each block card now exposes an independent breakpoint toggle. When enabled, the breakpoint preference is stored with the block.

Breakpoints are only emitted into runtime code when Debug Mode is enabled from Visual Builder settings. When Debug Mode is off, breakpoints stay saved but do not pause execution.

Use ASSERT for fail-fast validation, and use breakpoints for step-by-step tracing and controlled pauses in the same flow.

Variable Scope

Variables defined with SET_VARIABLE are accessible throughout the macro (global scope). All blocks can read/write the same variable.

However, a variable defined inside a GROUP will be 'nil' (undefined) until the GROUP executes. Blocks outside the GROUP using this variable may produce unexpected results.

FOR_EACH loop variables (item and index) only carry valid values inside the loop body. Outside the loop they are outside local scope and should not be used.

TRY_CATCH error variable is only valid within the catch block. If the try block succeeds, the catch branch is not entered and the error variable remains undefined.

TIP: Before using a variable inside a GROUP, assign a default value with SET_VARIABLE outside the GROUP. This way the variable won't be nil even if the GROUP has not run.

Inline Expressions

You can embed variable values and calculations into text fields using {{ expression }} syntax. Expressions inside double curly braces are evaluated as Lua code and the result is inserted into the text.

Syntax

{{ expression }}

Examples

Skor: {{ score + 1 }} → "Skor: " .. tostring(score + 1)

{{ name }} kazandı! → tostring(name) .. " kazandı!"

X:{{ x }} Y:{{ y }} → "X:" .. tostring(x) .. " Y:" .. tostring(y)

Supported Blocks

SET_VARIABLELOGCOMPARECLIPBOARD_WRITENOTIFY_TOASTKV_SET

Security Note

Expressions are checked by the sandbox policy. Security-sensitive calls like loadstring, require, debug are automatically blocked.

General Tips

Keep scan regions as small as possible — improves speed, reduces false matches.

Always add an exit condition when using infinite loops (BREAK, timeout, or conditional exit).

Use network operations and error-prone steps inside TRY_CATCH.

If you need global error handling, use the Error Handler (ERROR_HANDLER) block as a singleton in the project.

Small coordinate offsets (CLICK/SWIPE) improve tap accuracy across different DPI and screen scales.

Customize macros with Dialog block — different parameters each run.

Define repeating steps once with GROUP_CALL, call from many places.
