Send to the shared area
When one item or a multi-selection is active, the shared-area button can copy the selected part from the workspace, group, true/false action branch, dialog, and variables surfaces into the device-local library.
No-Code Workspace — Block Reference
ActionBlock usage recipeComing soonv1.0.51
Stop Navigation (NAVIGATION_STOP)
Stops this macro navigation and confirms joystick release
Documented for app version 1.0.51 (not on Google Play yet)Updated:

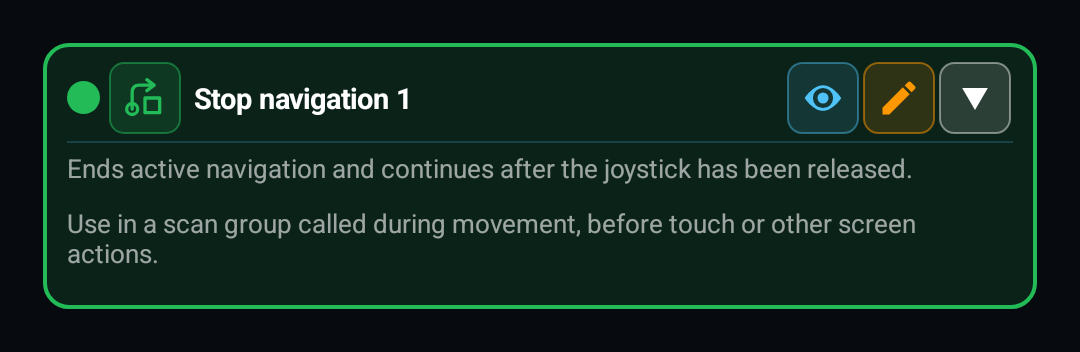

Block Preview
Captured from the in-app Visual Builder block card in the English UI.
English UI
What Does It Do?
Ends the active navigation journey. The next block runs only after confirmed input release. Continues safely when navigation is inactive; it does not replace the macro Stop control.
When to Use?
1
Use it in a Scan group while moving when a detected target requires a tap, swipe or another screen action.
How to Use?
1
In the Navigation block, choose a Scan group while moving.
2
Scan for the target in that group.
3
Add Stop navigation to the found branch.
4
Put the tap or other action after this block.
Example Usage
1
Scan group: Image → Found → Stop navigation → Click. The not-found branch returns without interrupting movement. The stopped journey does not resume automatically.
Combinations / Used With
1
Image, Text, Color or detect-only Agent Detect → Stop navigation → Click. To travel again, explicitly run a later Navigation block.
Tip
To run a route-point group and continue, no extra stop is needed: a Point action already calls its group after joystick release.
Warnings / Cautions
1
If release cannot be confirmed, NAVIGATION_RELEASE_UNCONFIRMED blocks the next action. In a scan group, a screen action placed before this block stops with NAVIGATION_STOP_REQUIRED_BEFORE_SCREEN_ACTION. This block controls only the navigation session owned by this macro.
Step-by-Step Mastery: Basic → Advanced → Pro
The same block at three levels: a quick start, the real options, and professional techniques.
Basic
Stop navigation ends the active journey owned by this macro. The next block runs only after confirmed input release. It continues safely when no journey is active.
Advanced
Use it on the target-found branch inside a Scan group while moving. A normal group return keeps travelling; after this block, the journey does not resume automatically. Point action groups already run with the joystick released, so no extra stop is needed when the route should continue after the group.
Pro
The Lua equivalent is Navigation.stop(). true means release was confirmed or no journey was active. Do not perform a screen action after false; the generated block raises NAVIGATION_RELEASE_UNCONFIRMED. The macro Stop control remains separate.
Real-World Scenarios — Step-by-Step Recipes
Small, reproducible examples that combine several blocks — build them straight into your own macro.
Stop and tap at a target
- 1In the Navigation block, choose a Scan group while moving.
- 2Use Image, Text, Color or detect-only Agent Detect in the group.
- 3Add Stop navigation, then Click, to the found branch.
- 4Return from the not-found branch without an action.
Which Blocks to Pair With — Pro Combinations
This block is useful on its own — but it shines when paired with the right partners.
+ Navigation + scan + Click
Scans while travelling; releases the joystick before tapping a detected target.
Common Mistakes and Fixes
Expecting the route to restart automatically after this block. Explicitly run a later Navigation block for a new journey.
Pro Tips
Keep observation scans short; the next observation uses the newest valid sample and the same group is not duplicated concurrently.
This Block's Code (Editor View)
LuaThe Lua below is what the Code Editor generates for this block with sample settings. Adding cases, branches, actions or loops, or changing settings, extends the generated code accordingly. Study it to see what the block does under the hood, to learn Lua, or to copy and adapt it. Use the Copy button (top-right) to paste it into the Code Editor, or “Try in Editor →” to run it in the live editor.
if Navigation.stop() ~= true then error("NAVIGATION_RELEASE_UNCONFIRMED") endNote: generated code can evolve across versions; helper names (e.g. _reg1, m1) and internal optimizations may change. The logic and the called APIs reflect the block’s behavior.
Shared Controls for This Block Family
The guidance below is not identical for every block. It summarizes the professional controls that most often repeat in the selected block family.
📍Target Point or Match Center
Choose clearly between a fixed coordinate, "act on match" (the position the previous search found), or an {x}-bound variable/dialog value to define where the action executes. Binding {matchX},{matchY} does not break across devices or resolutions.
🎛Duration and Repeats
Hold time, repeat count, and inter-action delay shape how aggressive or natural the action feels.
🎲Small Offset
Random offsets or waypoints help validate fixed-coordinate tests across different screen layouts. "In-Match Jitter" randomizes the tap inside the match box and uses the configured margin to stay away from target boundaries. Keep repeated UI tests bounded and record a visible result.
🪜Before and After Waits
Before-waits let UI settle before the action; after-waits let the next block see the updated screen state.
Builder vs Lua Boundary
Raw touch pointer lifecycle stays code-first
TOUCH and TOUCH_BREAK cover recipe-style touch flows. Raw pointer choreography such as Touch.down, Touch.move, Touch.up, Touch.dispatch, Touch.reset, Touch.breakAll, and Touch.releaseAfter is not exposed as a first-class builder block.
Touch.downTouch.moveTouch.upTouch.dispatchTouch.resetTouch.breakAllTouch.releaseAfterBounded dialog design is builder-backed; freer composition stays code-first
The DIALOG block and dialog designer cover a bounded field set in the builder: Info Text, Text Input, Checkbox, Description, Radio Group, Dropdown, Multi Select, Tab Group, Date Time, Number Range, Slider, Image Picker, Color Picker, File Picker, Recorder Picker, Tag, Signature, and Spacer. The buttons are designed too: the Positive button and Negative button tabs set each button’s text, background, and border color, corner radius, and minimum height next to a preview. Freer Setting.builder composition, multi-step wizard flows, and mixed HUD/dialog choreography still do not map 1:1 into the builder.
Coming soonv1.0.51Two more fields: Agent Detect references (agent_detect_editor) lets the user pick a saved reference set or add and edit references, and Save confirms the selection; Navigation setup editor (navigation_editor) edits a saved map, marker and route from the Dialog and returns the setup and route selection without moving the character.
Setting.builderDialogHudTextViewAgentDetectEditorNavigationEditorAdvanced HTTP request chaining stays code-first
HTTP_GET, HTTP_POST, and HTTP_PUT cover common fixed-method flows; HTTP_REQUEST covers one bounded request with method, header lines, body, content type, query parameters (GET and DELETE), timeout, and a bounded retry. These blocks never throw; they write the status code (-1 on a network failure). Cookie handling, chained request objects, and lower-level client flows still need the code editor.
Request()Request.setCookieRequest.getCookiesCUSTOM_CODEGeneral programming surfaces stay code-first
The MAP, LIST, JSON_PARSE, REGEX_MATCH, and METRICS blocks cover the everyday cases: map actions, a static list, reading a value from a JSON path, regex match, find, replace, and split, and metrics actions. The rest of the Map, Array, JSON, Regex, and Metrics APIs (for example Array sort, filter, and map) is broader than the builder recipe model and stays on the CUSTOM_CODE and code editor side.
MapArrayJSONRegexMetricsLow-level runtime and Lua composition stays code-first
Runtime helpers, raw Request objects, Lua built-ins such as print/pcall/xpcall, and free-form object chaining patterns are represented through CUSTOM_CODE or the code editor.
RuntimeRequestprintpcallxpcallCUSTOM_CODEDebug Mode and Breakpoints
Each block card now exposes an independent breakpoint toggle. When enabled, the breakpoint preference is stored with the block.
Breakpoints are only emitted into runtime code when Debug Mode is enabled from Visual Builder settings. When Debug Mode is off, breakpoints stay saved but do not pause execution.
Use ASSERT for fail-fast validation, and use breakpoints for step-by-step tracing and controlled pauses in the same flow.
Variable Scope
1
Variables defined with SET_VARIABLE are accessible throughout the macro (global scope). All blocks can read/write the same variable.
2
However, a variable defined inside a GROUP will be 'nil' (undefined) until the GROUP executes. Blocks outside the GROUP using this variable may produce unexpected results.
3
FOR_EACH loop variables (item and index) only carry valid values inside the loop body. Outside the loop they are outside local scope and should not be used.
4
TRY_CATCH error variable is only valid within the catch block. If the try block succeeds, the catch branch is not entered and the error variable remains undefined.
5
TIP: Before using a variable inside a GROUP, assign a default value with SET_VARIABLE outside the GROUP. This way the variable won't be nil even if the GROUP has not run.
Inline Expressions
You can embed variable values and calculations into text fields using {{ expression }} syntax. Expressions inside double curly braces are evaluated as Lua code and the result is inserted into the text.
Syntax
{{ expression }}Examples
Skor: {{ score + 1 }} → "Skor: " .. tostring(score + 1){{ name }} kazandı! → tostring(name) .. " kazandı!"X:{{ x }} Y:{{ y }} → "X:" .. tostring(x) .. " Y:" .. tostring(y)Supported Blocks
SET_VARIABLELOGCOMPARECLIPBOARD_WRITENOTIFY_TOASTKV_SET
Security Note
Expressions are checked by the sandbox policy. Security-sensitive calls like loadstring, require, debug are automatically blocked.
General Tips
1
Keep scan regions as small as possible — improves speed, reduces false matches.
2
Always add an exit condition when using infinite loops (BREAK, timeout, or conditional exit).
3
Use network operations and error-prone steps inside TRY_CATCH.
4
If you need global error handling, use the Error Handler (ERROR_HANDLER) block as a singleton in the project.
5
Small coordinate offsets (CLICK/SWIPE) improve tap accuracy across different DPI and screen scales.
6
Customize macros with Dialog block — different parameters each run.
7
Define repeating steps once with GROUP_CALL, call from many places.
Cross-macro local library
Local Shared Macro Area
The Local Shared Macro Area moves blocks, variables, dialog fields, gallery assets, and imported media dependencies between macros on the same device. It is device-local, not cloud sync, not Firebase sharing, and not a replacement for public macro sharing.
Professional usage model: put a reusable login flow, common scan region, shared dialog form, variable group, template image, color profile, replay recording, or imported PLAY_SOUND media file into the shared area from one macro, then import it from the relevant + menu in another macro.
VISUAL_BLOCKSVARIABLESDIALOG_FIELDSTEMPLATE_IMAGECOLOR_SWATCHREPLAY_RECORDMEDIA_FILE2
Import into another macro
The shared-area entry under the + menu imports the selected item into the surface that opened it. Main workspace, group, action branch, dialog, and variables each receive the compatible item type.
3
Share gallery assets
Gallery items include template images, color swatches, replay records, and imported audio/media files. They can move between macros on the same device so repeated templates, colors, recordings, and PLAY_SOUND media assets do not need to be captured again.
4
Keep it clean
The shared area is not a permanent dumping ground. Delete stale shared items from the shared-library panel; imports create a copy in the target macro and do not rewrite the source macro flow.
Checkpoint: after importing, review block names, linked template/image/color/record/media assets, and variable names in the target macro. The shared area creates a copy; delete stale shared items from the shared-library panel to keep the library clean.
AI assistant
Build a block chain with MH AI in natural language
Tell MH AI what you want in plain language; it proposes the right block sequence and lands it in the workspace after you approve. In the current release it works with cloud providers such as Gemini, Claude, and OpenAI; on-device local models are on the roadmap.
