No-Code Workspace — Block Reference

ActionBlock usage recipe

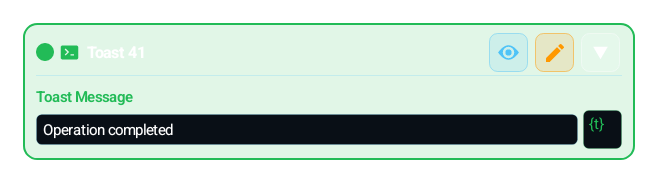

Toast (NOTIFY_TOAST)

Shows a short, temporary on-screen message

Documented for app version 1.0.50Updated: October 2, 2026

What Does It Do?

Shows a short-lived toast on screen while the macro runs. It is the lightest way to tell the user that a step finished, a target was missing or what a result was.

When to Use?

Give brief feedback when a step finishes, a target is missing or a response arrives

How to Use?

Type the message; add a variable’s value with {{ expression }} or bind the whole message to a variable with the lightbulb

Use DIALOG or HUD Overlay for longer explanations

Parameters

Message

Short text to show; supports {{ expression }} or a lightbulb variable

Parameter	Description
Message	Short text to show; supports {{ expression }} or a lightbulb variable

Example Usage

On IMAGE’s FALSE branch, Toast: "Target not found, attempt {{ attempt }}"

Combinations / Used With

IMAGE + NOTIFY_TOAST: inform when a target is missing

ERROR_HANDLER + NOTIFY_TOAST: a visible error signal

Tip

Keep toast text short; long instructions disappear before they are read.

Warnings / Cautions

A toast is temporary; do not use it as a persistent status display (use HUD Overlay)

Showing many toasts per second annoys the user

Step-by-Step Mastery: Basic → Advanced → Pro

The same block at three levels: a quick start, the real options, and professional techniques.

Basic

NOTIFY_TOAST shows a short, transient on-screen toast. It is the lightest visible feedback when a step finished, a target was missing, or you want to drop the user a quick note. Just type a short message in the message field.

Advanced

The message does not have to be static: with the {{ expression }} inline syntax you can embed variables and small computations into the text; for example 'Round {{ round }}/10 done' shows the current count each round. Instead of firing the toast every time, the cleanest pattern is to trigger it in the FALSE branch of a COMPARE or inside an ERROR_HANDLER, so the toast appears only on a meaningful event. The generated code is a single System.toast call, so the block is very cheap and never blocks the flow.

Pro

Notification etiquette matters: a toast is transient and is not a substitute for a persistent status panel. Firing more than one toast per second annoys the user and lets messages stack up. When you want a persistent, updatable indicator, switch to HUD_OVERLAY; when you need a long instruction or confirmation, use DIALOG. Keep the toast short, single-line and actionable ('No target, retrying'); think of it as a signal, not a paragraph.

Real-World Scenarios — Step-by-Step Recipes

Small, reproducible examples that combine several blocks — build them straight into your own macro.

Notify briefly when a target is missing

1Run an IMAGE or TEXT search
2In the FALSE branch use NOTIFY_TOAST -> 'Target not found, retrying'
3WAIT and repeat the search

Show a summary of the API result

1HTTP_REQUEST -> resultVar=apiResponse
2JSON_PARSE -> path=user.name, resultVar=name
3NOTIFY_TOAST -> 'Hello {{ name }}'

Which Blocks to Pair With — Pro Combinations

This block is useful on its own — but it shines when paired with the right partners.

+ IMAGE / TEXT

When a search returns FALSE it gives a short, non-intrusive heads-up.

+ HTTP_REQUEST + JSON_PARSE

Summarizes remote data with {{ expression }} and shows it on screen instantly.

+ ERROR_HANDLER

Drops a user-visible signal when an error is caught.

Common Mistakes and Fixes

Using a toast as a persistent status panel. Fix: use HUD_OVERLAY for a persistent, updatable display.

Firing a toast every loop iteration and flooding the screen. Fix: trigger only on a threshold or state change (e.g., in a COMPARE branch).

Trying to cram a long instruction into a toast. Fix: use DIALOG for multi-line content and HUD_OVERLAY for longer guidance.

Pro Tips

Write messages short and actionable; a toast is a signal, not a report.

While debugging, show a variable's live value with {{ expression }}; it acts like a quick print.

This Block's Code (Editor View)

Lua

The Lua below is what the Code Editor generates for this block with sample settings. Adding cases, branches, actions or loops, or changing settings, extends the generated code accordingly. Study it to see what the block does under the hood, to learn Lua, or to copy and adapt it. Use the Copy button (top-right) to paste it into the Code Editor, or “Try in Editor →” to run it in the live editor.

lua

Try in Editor →

System.toast("ok")

Note: generated code can evolve across versions; helper names (e.g. _reg1, m1) and internal optimizations may change. The logic and the called APIs reflect the block’s behavior.

Block ↔ Lua Mapping →

Shared Controls for This Block Family

The guidance below is not identical for every block. It summarizes the professional controls that most often repeat in the selected block family.

📍Target Point or Match Center

Choose clearly between a fixed coordinate, "act on match" (the position the previous search found), or an {x}-bound variable/dialog value to define where the action executes. Binding {matchX},{matchY} does not break across devices or resolutions.

🎛Duration and Repeats

Hold time, repeat count, and inter-action delay shape how aggressive or natural the action feels.

🎲Small Offset

Random offsets or waypoints help validate fixed-coordinate tests across different screen layouts. "In-Match Jitter" randomizes the tap inside the match box and uses the configured margin to stay away from target boundaries. Keep repeated UI tests bounded and record a visible result.

🪜Before and After Waits

Before-waits let UI settle before the action; after-waits let the next block see the updated screen state.

Builder vs Lua Boundary

Raw touch pointer lifecycle stays code-first

TOUCH and TOUCH_BREAK cover recipe-style touch flows. Raw pointer choreography such as Touch.down, Touch.move, Touch.up, Touch.dispatch, Touch.reset, Touch.breakAll, and Touch.releaseAfter is not exposed as a first-class builder block.

Touch.downTouch.moveTouch.upTouch.dispatchTouch.resetTouch.breakAllTouch.releaseAfter

Bounded dialog design is builder-backed; freer composition stays code-first

The DIALOG block and dialog designer cover a bounded field set in the builder: Info Text, Text Input, Checkbox, Description, Radio Group, Dropdown, Multi Select, Tab Group, Date Time, Number Range, Slider, Image Picker, Color Picker, File Picker, Recorder Picker, Tag, Signature, and Spacer. The buttons are designed too: the Positive button and Negative button tabs set each button’s text, background, and border color, corner radius, and minimum height next to a preview. Freer Setting.builder composition, multi-step wizard flows, and mixed HUD/dialog choreography still do not map 1:1 into the builder.

Coming soonv1.0.51Two more fields: Agent Detect references (agent_detect_editor) lets the user pick a saved reference set or add and edit references, and Save confirms the selection; Navigation setup editor (navigation_editor) edits a saved map, marker and route from the Dialog and returns the setup and route selection without moving the character.

Setting.builderDialogHudTextViewAgentDetectEditorNavigationEditor

Advanced HTTP request chaining stays code-first

HTTP_GET, HTTP_POST, and HTTP_PUT cover common fixed-method flows; HTTP_REQUEST covers one bounded request with method, header lines, body, content type, query parameters (GET and DELETE), timeout, and a bounded retry. These blocks never throw; they write the status code (-1 on a network failure). Cookie handling, chained request objects, and lower-level client flows still need the code editor.

Request()Request.setCookieRequest.getCookiesCUSTOM_CODE

General programming surfaces stay code-first

The MAP, LIST, JSON_PARSE, REGEX_MATCH, and METRICS blocks cover the everyday cases: map actions, a static list, reading a value from a JSON path, regex match, find, replace, and split, and metrics actions. The rest of the Map, Array, JSON, Regex, and Metrics APIs (for example Array sort, filter, and map) is broader than the builder recipe model and stays on the CUSTOM_CODE and code editor side.

MapArrayJSONRegexMetrics

Low-level runtime and Lua composition stays code-first

Runtime helpers, raw Request objects, Lua built-ins such as print/pcall/xpcall, and free-form object chaining patterns are represented through CUSTOM_CODE or the code editor.

RuntimeRequestprintpcallxpcallCUSTOM_CODE

Debug Mode and Breakpoints

Each block card now exposes an independent breakpoint toggle. When enabled, the breakpoint preference is stored with the block.

Breakpoints are only emitted into runtime code when Debug Mode is enabled from Visual Builder settings. When Debug Mode is off, breakpoints stay saved but do not pause execution.

Use ASSERT for fail-fast validation, and use breakpoints for step-by-step tracing and controlled pauses in the same flow.

Variable Scope

Variables defined with SET_VARIABLE are accessible throughout the macro (global scope). All blocks can read/write the same variable.

However, a variable defined inside a GROUP will be 'nil' (undefined) until the GROUP executes. Blocks outside the GROUP using this variable may produce unexpected results.

FOR_EACH loop variables (item and index) only carry valid values inside the loop body. Outside the loop they are outside local scope and should not be used.

TRY_CATCH error variable is only valid within the catch block. If the try block succeeds, the catch branch is not entered and the error variable remains undefined.

TIP: Before using a variable inside a GROUP, assign a default value with SET_VARIABLE outside the GROUP. This way the variable won't be nil even if the GROUP has not run.

Inline Expressions

You can embed variable values and calculations into text fields using {{ expression }} syntax. Expressions inside double curly braces are evaluated as Lua code and the result is inserted into the text.

Syntax

{{ expression }}

Examples

Skor: {{ score + 1 }} → "Skor: " .. tostring(score + 1)

{{ name }} kazandı! → tostring(name) .. " kazandı!"

X:{{ x }} Y:{{ y }} → "X:" .. tostring(x) .. " Y:" .. tostring(y)

Supported Blocks

SET_VARIABLELOGCOMPARECLIPBOARD_WRITENOTIFY_TOASTKV_SET

Security Note

Expressions are checked by the sandbox policy. Security-sensitive calls like loadstring, require, debug are automatically blocked.

General Tips

Keep scan regions as small as possible — improves speed, reduces false matches.

Always add an exit condition when using infinite loops (BREAK, timeout, or conditional exit).

Use network operations and error-prone steps inside TRY_CATCH.

If you need global error handling, use the Error Handler (ERROR_HANDLER) block as a singleton in the project.

Small coordinate offsets (CLICK/SWIPE) improve tap accuracy across different DPI and screen scales.

Customize macros with Dialog block — different parameters each run.

Define repeating steps once with GROUP_CALL, call from many places.

Cross-macro local library

Local Shared Macro Area

The Local Shared Macro Area moves blocks, variables, dialog fields, gallery assets, and imported media dependencies between macros on the same device. It is device-local, not cloud sync, not Firebase sharing, and not a replacement for public macro sharing.

Professional usage model: put a reusable login flow, common scan region, shared dialog form, variable group, template image, color profile, replay recording, or imported PLAY_SOUND media file into the shared area from one macro, then import it from the relevant + menu in another macro.

VISUAL_BLOCKSVARIABLESDIALOG_FIELDSTEMPLATE_IMAGECOLOR_SWATCHREPLAY_RECORDMEDIA_FILE

Send to the shared area

When one item or a multi-selection is active, the shared-area button can copy the selected part from the workspace, group, true/false action branch, dialog, and variables surfaces into the device-local library.

Import into another macro

The shared-area entry under the + menu imports the selected item into the surface that opened it. Main workspace, group, action branch, dialog, and variables each receive the compatible item type.

Share gallery assets

Gallery items include template images, color swatches, replay records, and imported audio/media files. They can move between macros on the same device so repeated templates, colors, recordings, and PLAY_SOUND media assets do not need to be captured again.

Keep it clean

The shared area is not a permanent dumping ground. Delete stale shared items from the shared-library panel; imports create a copy in the target macro and do not rewrite the source macro flow.

Checkpoint: after importing, review block names, linked template/image/color/record/media assets, and variable names in the target macro. The shared area creates a copy; delete stale shared items from the shared-library panel to keep the library clean.

AI assistant

Build a block chain with MH AI in natural language

Tell MH AI what you want in plain language; it proposes the right block sequence and lands it in the workspace after you approve. In the current release it works with cloud providers such as Gemini, Claude, and OpenAI; on-device local models are on the roadmap.

Learn more →
